RISC-V Core

Five stages, four pipeline registers, and every hazard handled by hand: a processor written one wire at a time.

Role: Designer
Year: 2024
ISA: RISC-V (RV32I subset)
Language: Verilog HDL
Pipeline: IF · ID · EX · MEM · WB
Code: Source ↗

The idea

Run five instructions at once, and keep them in order.

A single-cycle CPU does one instruction per clock, and the clock has to be slow enough for the longest instruction. Pipelining splits the work into five stages, like an aqueduct carrying water in sections, so five instructions are in flight at once and the clock only has to wait for one stage.

The catch is that instructions depend on each other. An add may need a value that a lw three slots ahead hasn't loaded yet. Making a pipeline correct means seeing every one of those conflicts coming, and that's what most of this project was about.

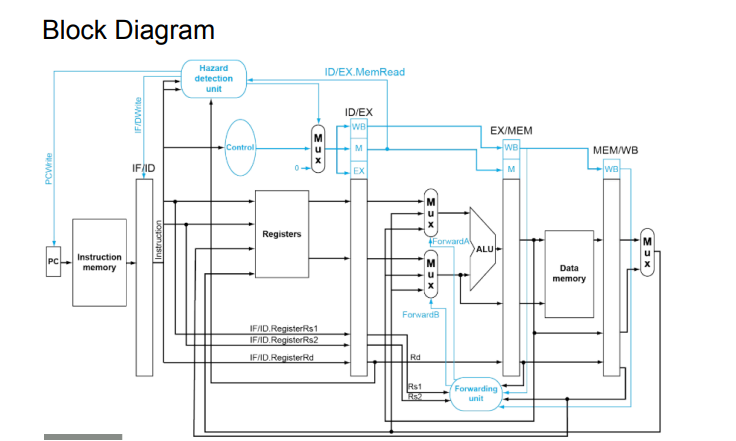

Pipelined RISC-V datapath diagram — **Fig. 1**The pipelined datapath: four inter-stage registers separating the five stages.

Hazards, live

Turn forwarding off and watch the stalls appear.

This is the program I used to test the hazard logic, laid out cycle by cycle. With forwarding on, results go straight from the EX/MEM and MEM/WB registers back to the ALU, and the only stall left is the unavoidable load-use bubble. With forwarding off, every dependent instruction waits in decode for write-back.

Pipeline simulator

Press Play or Step to clock the pipeline.

Cycle 0Total cycles —Stall cycles —Effective CPI —

iii

The units

The control units that keep it correct.

Hazard detection

Stall & bubble

Detects a load whose destination register is needed by the very next instruction. It freezes the PC and IF/ID, and puts a NOP into ID/EX.

Forwarding unit

Bypass paths

Compares source registers in EX against the destinations in EX/MEM and MEM/WB, and steers the ALU input muxes to whichever value is newest.

Branch unit

Resolve & flush

Evaluates branch conditions, redirects the PC, and flushes the instructions that were fetched down the wrong path.

Trap logic

sepc · scause

Supervisor exception registers save the faulting PC and the cause, so the core can trap and return cleanly.

Control unit

Decode

Turns opcode and function fields into the control signals that travel down the pipeline with each instruction.

Immediate gen

I · S · B · U · J

Sign-extends and reshuffles the immediate bits for every RISC-V instruction format.

Repository layout

cpu/
├── Control And Top Module/
│   ├── CPU                  // top level: wires the stages together
│   ├── branchunit
│   ├── forwardingunit
│   ├── hazarddetectionunit
│   ├── scause · sepc        // trap state
├── Stages & Registers/
│   ├── IF_STAGE  → IF_ID_REG
│   ├── ID_STAGE  → ID_EXE_REG
│   ├── EXE_STAGE → EXE_MEM_REG
│   ├── MEM_STAGE → MEM_WB_REG
│   └── WB_STAGE
└── Low Level Modules/
    ├── alu · control_unit · immediate_gen.v
    ├── register_file.v · pc_register.v
    └── instruction memory.v · data_memory.v
